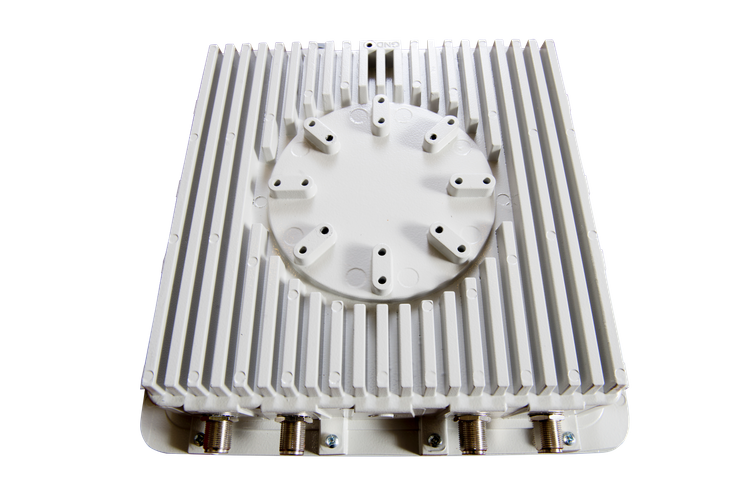

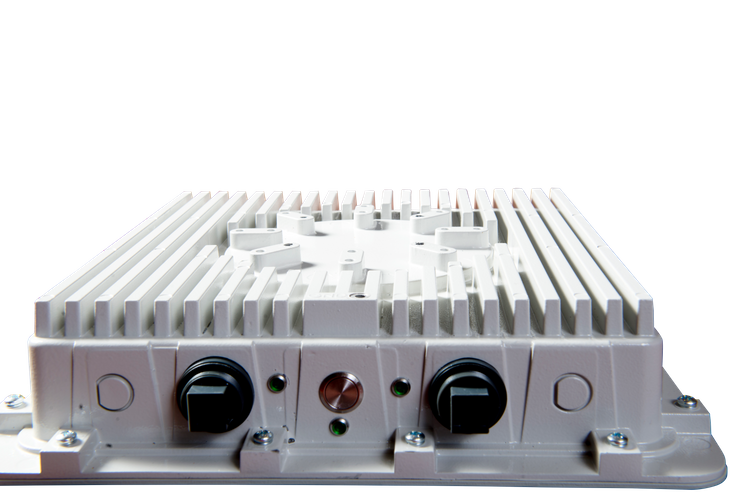

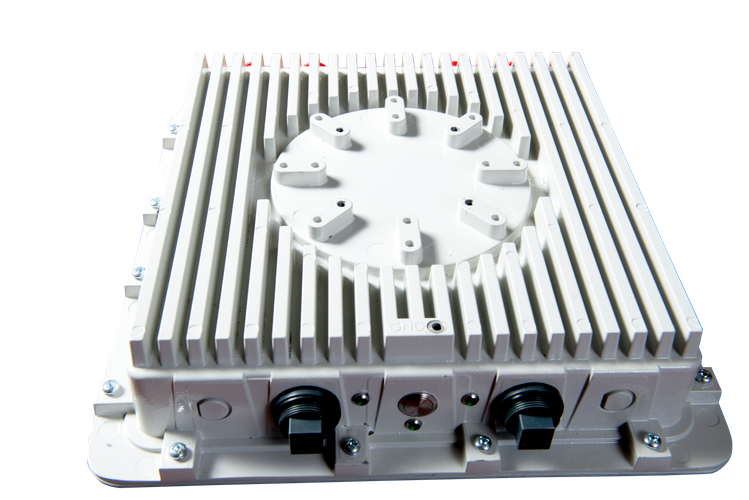

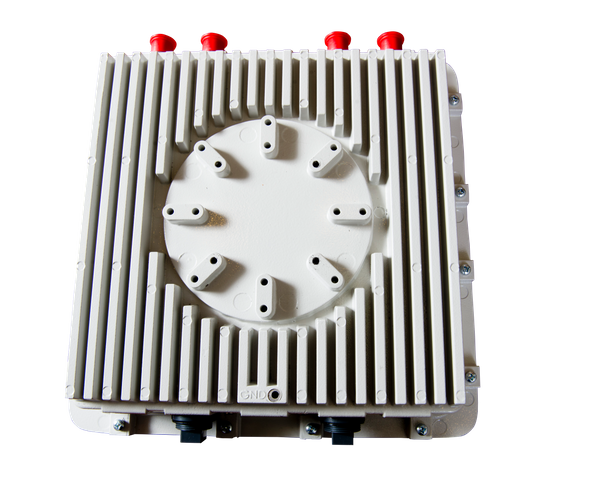

StarAccess radios are dual-band 2.4/5GHz 802.11ac/abgn WiFi Access Point with Mesh Capabilities that provides outdoor WiFi coverage at signaling rates up to 1.3 Gps. StarAccess 2350 is designed for wide area WiFi coverage. The StarAccess AC 2350 has significantly higher capacity and increased coverage capabilities over conventional Wi-Fi Access Points due to MIMO diversity advantage; good output power and sensitive receiver capability. Controller. The StarAccess AC radios are packaged in an IP67 ruggedized enclosure is suitable for all weather conditions. For connection into the network the Gigabit Ethernet interface on the StarAccess radios can connect to a wired backbone. EION StarAccess AC can be configured as a standalone access point, or as part of a group of APs managed by EION’s Network. Supports Channel sizes 20, 40 & 80 MHz.
Outdoor WiFi Radios
Outdoor WiFi Radios
Overview

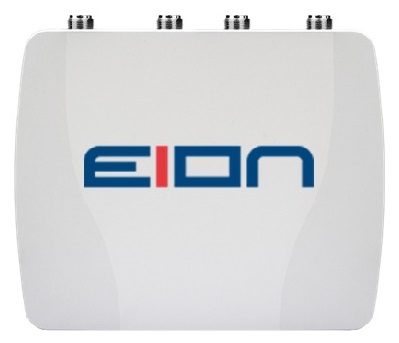

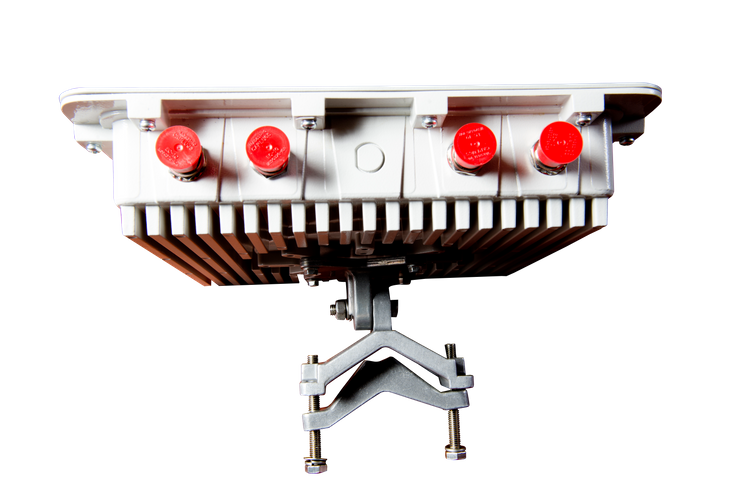

StreamPro 5400 802.11ax 3.6Gbps Outdoor WiFi AP
Dual Band | 4x4 MIMO | Very High Speed | Efficient Interference Mitigation
- 802.11ax 4x4 MU-MIMO Outdoor Wi-Fi AP
- Dual-band operation in 2.4 GHz & 5 GHz
- 3657 Mbps Data Rate
- 22dBm Maximum Transmit Power
- Antenna: External
- RF Connector: 4xN Type Antenna Connector
- OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024QAM
- 160 MHz Channel Bandwidth availability
- Seamless Roaming
- Target Wake-up Time (TWT) Support
- Surge Protection
- High Spectral Efficiency and Robust RF Network Performance
- 1 x 2.5 Gigabit Ethernet LAN/WAN RJ45 Port; 1 x Reset Button
- IP67 Rugged Construction for All Weather Conditions

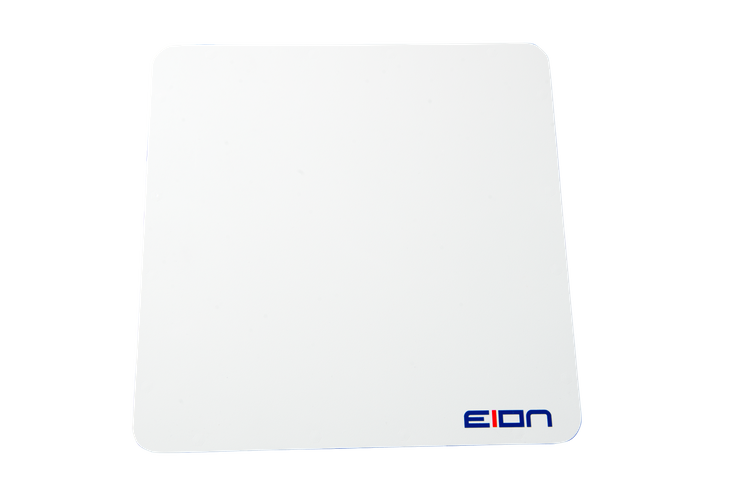

StarAccess AC 2350
- 3x3 MIMO Long-Range WiFi AP; upto 1.3 Gbps
- Integrated 14dBi antenna
- 2 x Gigabit Ethernet ports
- Metal enclosure
Datasheet
EION StarAccess AC 2350 Datasheet v9.1StarAccess AC 2300
- 6 x N-type female antenna connector
- 3x3 MIMO; upto 1.3 Gbps
- 2 x Gigabit Ethernet ports
- Metal enclosure
Datasheet
EION StarAccess AC 2300 Datasheet v8.1StarAccess AC 2250
- 2x2 MIMO Long Range WiFi AP; upto 867 Mbps
- 4 x N-type female antenna connector
- Enclosure Options: ABS and Metal
- 2 x Gigabit Ethernet ports

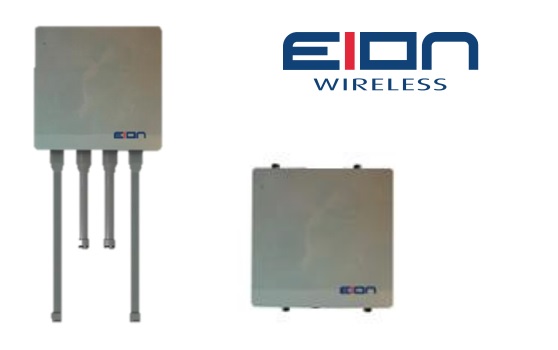

StarAccess AC 2200
- 2x2 MIMO; upto 867 Mbps
- 4 x N-type female antenna connector
- Optional 2 integrated 19dBi or 23dBi antenna
- Enclosure Options: ABS and Metal
- 2 x Gigabit Ethernet ports
Datasheet

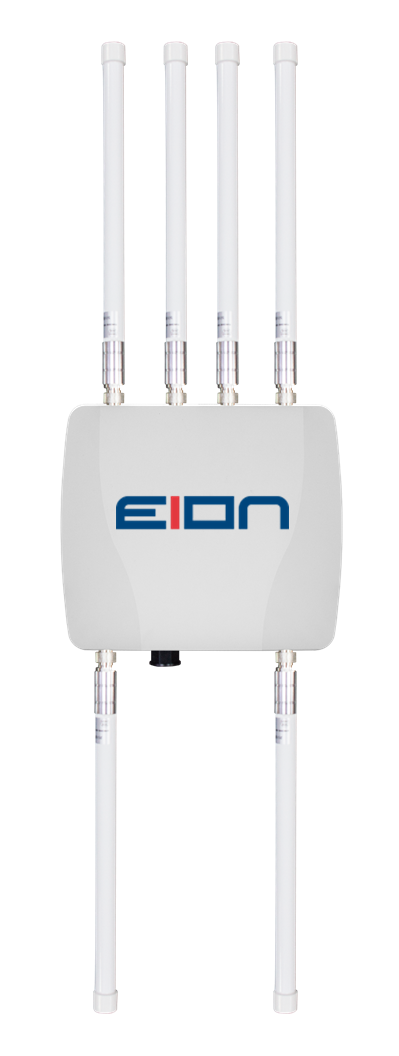

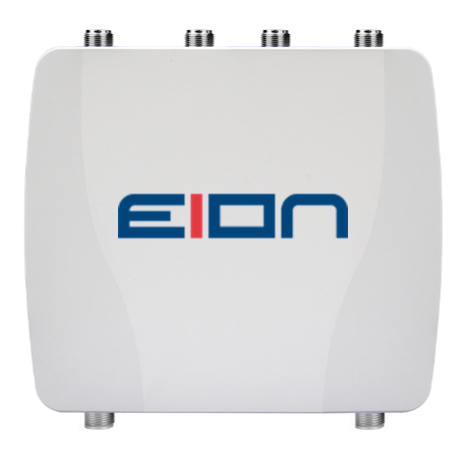

EION StarAccess AC 2200 Datasheet v9.1E-LINK Rapid 7.0 Wave 2.0 MU-MIMO Tri-Band 2200 Mbps Outdoor Access Point
- Tri-Band 2200 Mbps Data Rate (2.4GHz 300Mbps, 5.8GHz 900Mbps, 5.8GHz 900Mbps)
- 300mW high power
- 6 x N type connector, can work with omni/panel antennas
- Supports Beamforming, Band Steering
- Multi SSID up to 12 (4 SSID in 2.4GHz, 8 SSID in 5GHz)
- IP67 Outdoor metal enclosure
- WAN: 1 x 10/100/1000Mbps
- LAN: 1 x 10/100/1000Mbps

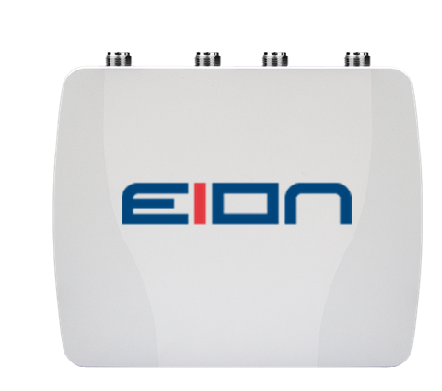

E-LINK Rapid 6.0 Wave 2.0 MU-MIMO Dual-Band 1300 Mbps Outdoor Access Point
- Dual-band, 1300Mbps Data Rate; 300mW high power
- 4 x N type connector, can work with omni/panel antennas
- Supports Beamforming, Band Steering
- Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
- IP67 Outdoor metal enclosure
- WAN: 1 x 10/100/1000Mbps
- LAN: 1 x 10/100/1000Mbps

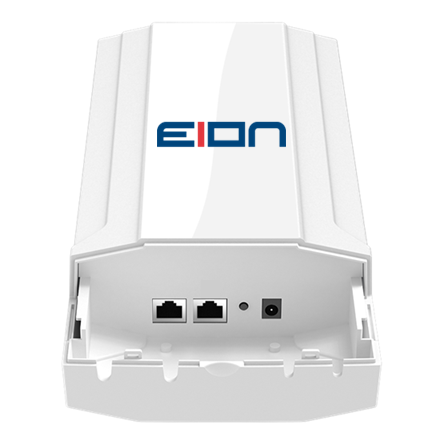

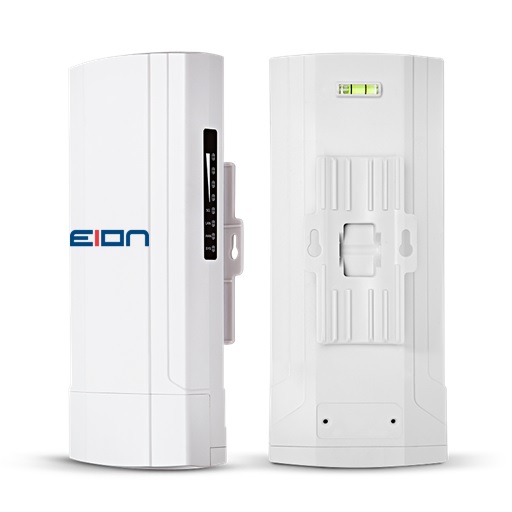

E-LINK RAPID 3.0 802.11ac 1200 Mbps Dual Band Outdoor Access Point
- 2.4GHz & 5GHz Dual Band Long Range transmission and coverage
- 1200 mbps data rate
- 26dBm aggregated power
- Built-in 14dBi and 12dBi panel antenna
- IP65 professional ABS plastic enclosure
- Less Wi-Fi interference, stable signal
- Plug and play

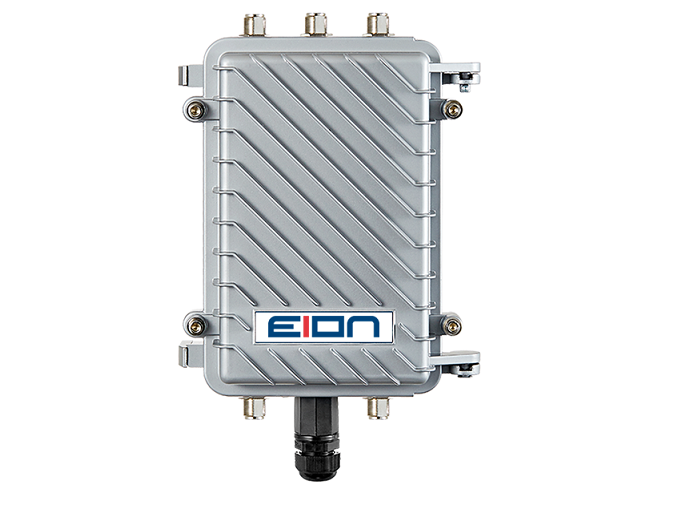

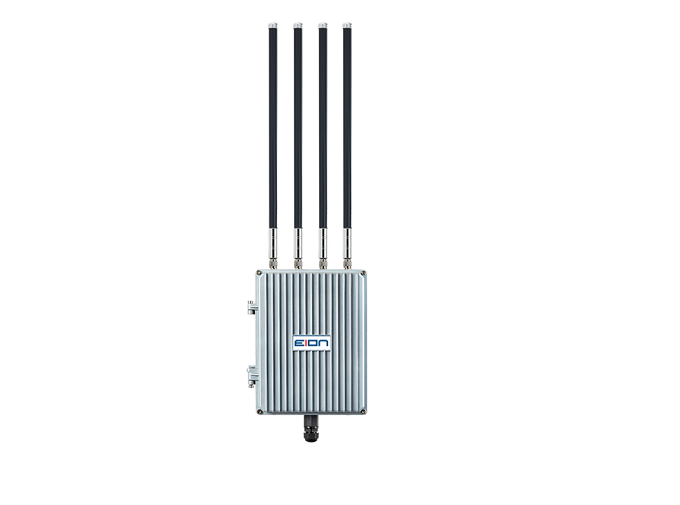

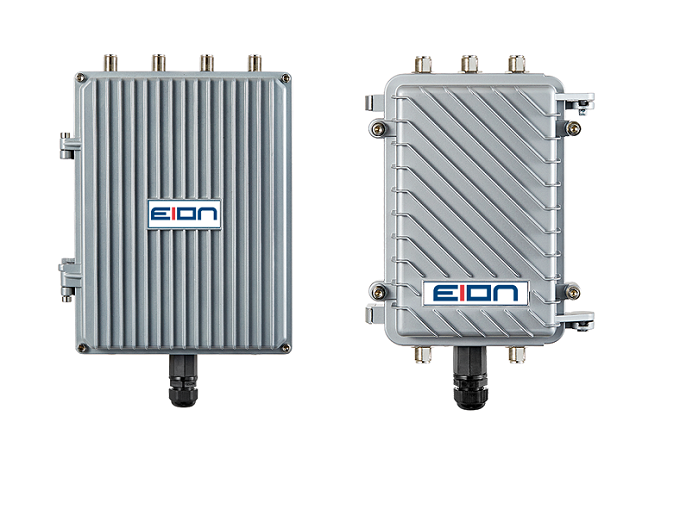

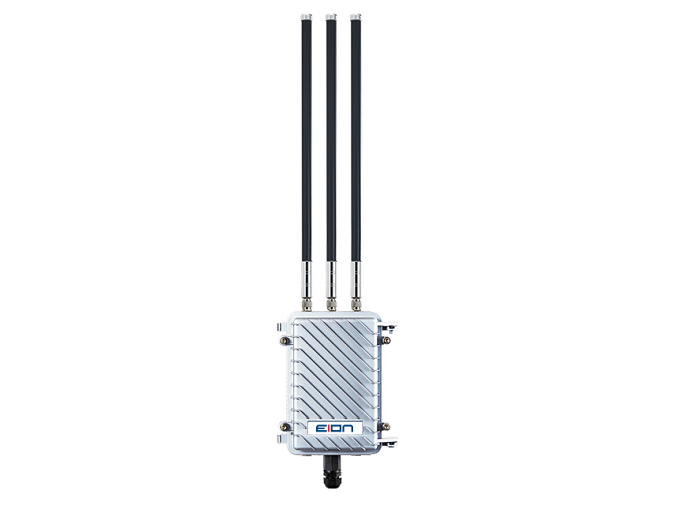

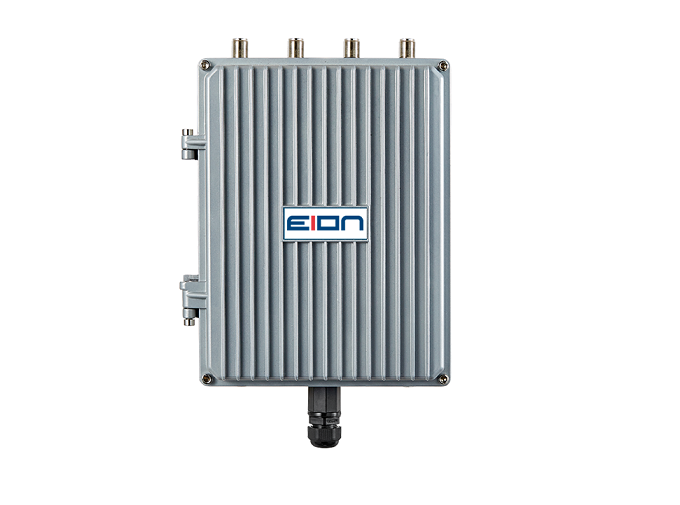

E-LINK Rugged & Ultra Rugged
- Metal Enclosure Options: Rugged & Ultra rugged
- 4 x N-Type External antenna
- 2x2 MIMO; Dual band - 2.4 GHz + 5GHz
Tunnel WiFi
- Outdoor 802.11 WiFi coverage for tunnel and underground locations
- Dual Band 2.4GHz/ 5.8 GHz; upto 300 Mbps data rate per radio
- 2x2 MIMO; Gigabit Ethernet interface
- IP67 Ruggedized outdoor enclosure
Datasheet
Tunnel-WiFi_2019Street WiFi
- Outdoor 802.11 Dual Band 2.4GHz/ 5.8 GHz WiFi Hotspot
- Applications like WiFi Coverage in airports, stations, schools, hospitals, etc.
- 2x2 MIMO; Gigabit Ethernet interface
- IP67 Ruggedized outdoor enclosure
- Upto 300 Mbps data rate per radio
Datasheet

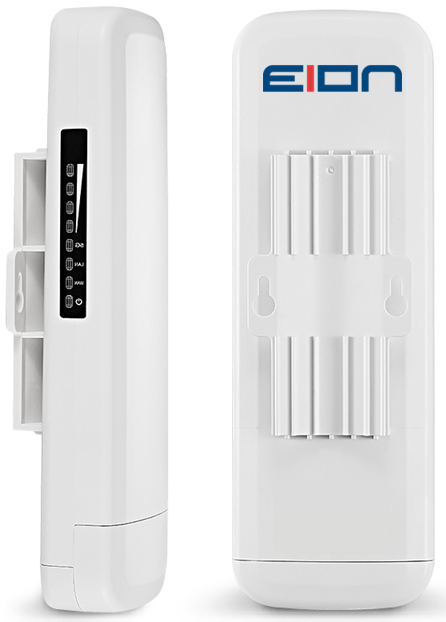

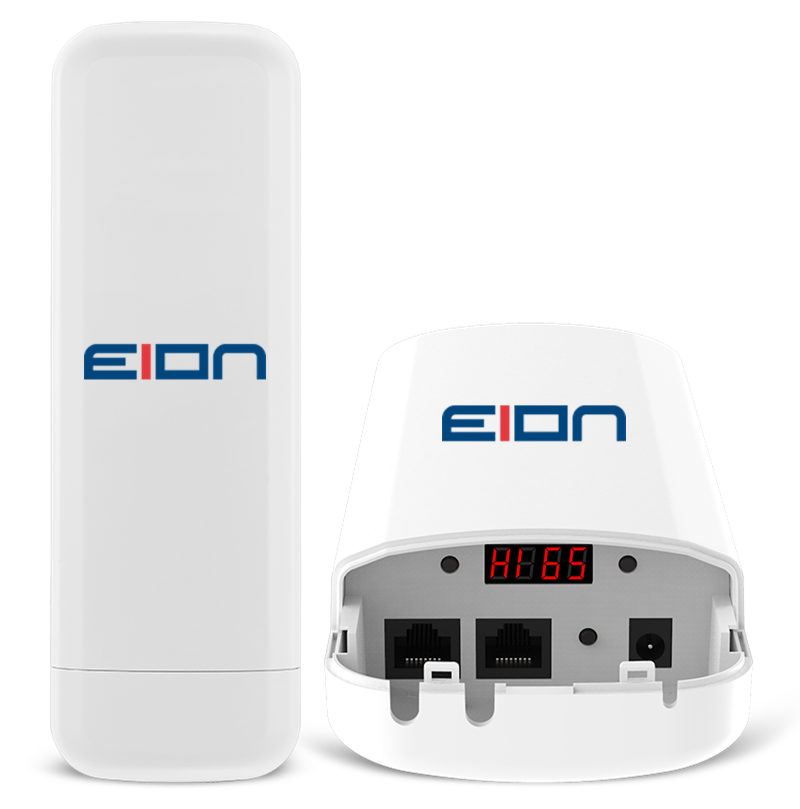

Street-WiFi-2019E-LINK RAPID 2.0 Outdoor High-Performance 802.11ac MIMO Broadband Radio
- Complies with IEEE 802.11ac/a/n, 900Mbps Data Rate
- 1 10/100/1000Mbps WAN Port, 1 10/100Mbps LAN Port
- 23 dBm (aggregated 26 dBm) power, built-in 14dBi MIMO panel antenna
- Support passive PoE for easy installation
- Support SSID broadcasting, Multi SSID up to 4
- Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP operation mode
- Complies with IEEE 802.3az standard, beamforming technology
- RF power adjustment and frequency analyzer
